CASSETTE air conditioners with round-way airflow
HEIKO CASSETTE air conditioners are a modern solution for offices, commercial premises, and residential spaces. Thanks to 360° airflow, which works from four sides and corners, the devices effectively distribute air throughout the room. A wide range of power options allows for precise adjustment to most interiors, and SMART Airflow function increases comfort by directing air away from users.
HEIKO air conditioners are distinguished by their quiet operation thanks to optimized components and intelligent control. Modern technologies allow for reduced energy consumption during both cooling and heating. Features such as TURBO, SLEEP mode and precie airflow louver control make these devices convenient and functional. Thanks to their compact design and aesthetic panel, CASSETTE units fit perfectly into ani interior, remaining almost invisible after installation.
Advantages of HEIKO CASSETTE ROUND-WAY AIRFLOW Air Conditioner
Round-way airflow
With the 360-degree cover, the air is supplied from four sides and corners to ensure efficient airflow in the room.
High energy efficiency
The use of innovative solutions has significantly reduced energy consmption in both cooling and heating modes.
SMART airflow
The airflow is automatically directed upwards during cooling and downwards during heating ensuring even distribution without direct airflow.
Airflow control

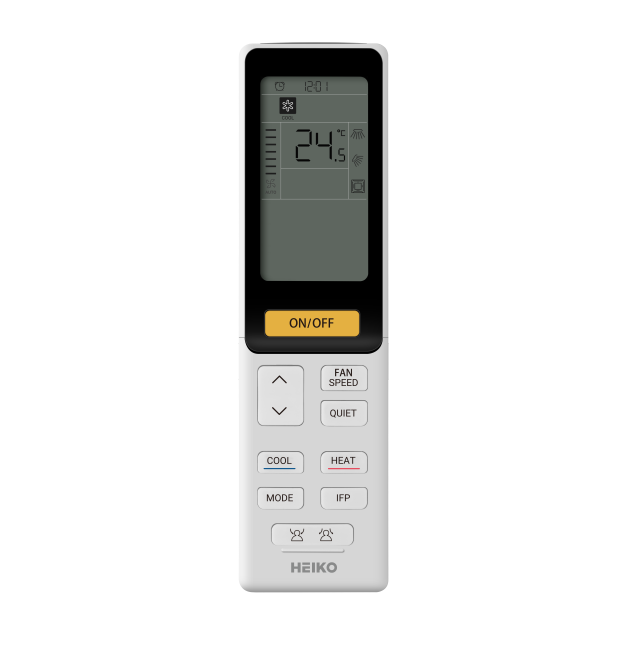

Vertical and horizontal louver control allows for precise airflow direction. This function is available via a wireless remote control.
Quiet operation
Quiet operation thanks to an optimized airflow system guarantees exceptionally quiet operation of the device, ensuring comfort in every situation.
ROUND-WAY AIRFLOW
HEIKO CASSETTE air conditioners are equipped with a specially designed 360° grille that allows air to be blown from four sides and corners of the unit. This solution allows for even and effective air distribution throughout the room. Circular air flow ensures an even temperature throughout the room, effectively eliminating areas with limited airflow, regardless of the layout and arrangement. This technology is ideal for office, commercial, and residential spaces, where even air circulation is crucial for the efficiency of air conditioning and user comfort.
HIGH ENERGY EFFICIENCY
HEIKO air conditioners are designed for maximum energy efficiency. Thanks to innovative technologies, the device consumes less energy in both cooling and heating modes. This translates into real savings in your household budget and a lower impact on the environment. It is the perfect solution for those looking for modern and energy-efficient air conditioning for their apartament, house or office.
SMART AIRFLOW
The SMART airflow function automatically adjust the airflow direction depending on the air conditioner’s operating mode. During cooling, the airflow is directed upwards, and during heating, it is directed downwards, ensuring even air distribution throughout the room. This avoids unpleasant direct airflow on people in the comfort zone. This smart solution increaces the efficiency of air conditioning and improves user comfort.
-
Technical data
Indoor unit CA070-A1 CA100-A1 Outdoor unit JZ070-A1 JZ100-A1 Nominal value Capacity Cooling Btu/h (nom.) 22200 31400 kW nom. (min.~max) 7.1(2~7.3) 9.2(2.5~10.0) Heating Btu/h (nom.) 24300 34800 kW nom. (min.~max.) 8.0(2.5~8) 10.2(3.0~10.5) Power input Cooling kW nom. (min.~max.) 2.20(0.5~2.6) 3.12(0.5-4.0) Heating kW nom. (min.~max.) 1.91(0.5~2.6) 2.91(0.5~4.0) EER/COP 3.23/3.72 3/3.5 Seasonal energy efficiency SEER/SCOP 6.1/3.8 5.9/3.8 Energy efficiency class (cooling/heating) A++/A A+/A Annual energy consumption (cooling) kWh 406 555 Annual energy consumption (heating) kWh 1831 2780 -
Indoor unit
Indoor unit CA070-A1 CA100-A1 Electrical data Power supply Ph/V/Hz 1/220~240/50/60 1/220~240/50/60 Performance Airflow m³/h 1260/1070/820/680 1680/1530/1320/1190 Sound power level dB(A) 55 62 Sound pressure level dB(A) 42/40/38/35 45/42/38/34 Installation Dimensions without packaging (W x D x H) mm 840/840/204 840/840/246 Dimensions with packaging (W x D x H) mm 990/990/310 990/990/310 Net/gross weight kg 27/32 31/36 Controller Wireless option YR-NRS01 YR-NRS01 Wired option YR-C01 YR-C01 Cover Model Option PB-950HE4 PB-950HE4 Dimensions (W x H x D) mm 950/950/50 950/950/50 Dimensions with packaging (W x D x H) mm 1000/1000/110 1000/1000/110 Net/gross weight kg 6.5/9 6.5/9 -
Outdoor unit
Outdoor unit JZ070-A1 JZ100-A1 Electrical data Power supply Ph/V/Hz 1/220~240/50/60 1/220~240/50/60 Performance Airflow (h) m³/h 3000 3500 Sound power level dB(A) 67 66 Sound pressure level dB(A) 54 53 Installation Dimensions without packaging (W x D x H) mm 890/353/697 920/372/760 Dimensions with packaging (W x D x H) mm 1046/460/780 1036/478/820 Net/gross weight kg 48/53 60/65 Compressor type Twin rotary Twin rotary Refrigerant R32 R32 GWP 675 675 Diameter of liquid pipe mm 9.52 9.52 Diameter of gas pipe mm 15.88 15.88 Total pipeline length (max) m 50 50 Max level difference m 30 30 Refrigerant filling kg 1.3 1.5 Total pipeline length without refill m 10 30 Amount of extra refrigerant per one metre of pipeline g/m 45 45 Operating conditions Cooling (min. – max) °C -10~46 -10~46 Heating (mix. – max) °C -15~24 -15~24
