BRISA wall-mounted air conditioner
HEIKO BRISA wall-mounted air conditioners are modern, energy-efficient devices designed for the comfort of users in apartments, houses and offices. Thanks to the build-in Wi-Fi module and the INTELLIGENT AIR app, they can be controlled remotely from anywhere. The compact construction and universal design make BRISA a good fit for various interior arrangements. The air conditioner offers cooling, heating, dehumidifying and ventilation functions, ensuring comfort throughout the year.
The BRISA model uses advanced technologies, including SMART airflow, which distributes air evenly without unpleasant drafts. The automatic louver control system (up-down, left-right) allows you to precisely direct the airflow. High energy efficiency reduces power consumption and lowers operating costs. Additional features such as Turbo, Sleep and quiet operation ensure conveniece, savings and comfort in everyday use.
Advantages of HEIKO BRISA Air Conditioner
Wi-Fi control
Standard Wi-Fi control allows you to operate the air conditioner from anywhere using your phone. The INTELLIGENT AIR Wi-Fi app provides quick access to all the basic functions of the device.
High energy efficiency
The use of innovative solutions has significantly reduced energy consumption in both cooling and heating modes.
SMART airflow
The airflow is automatically directed upwards during cooling and downwards during heating, ensuring even distribution without direct airflow.
Airflow control
Vertical and horizontal louver adjustment allows for precise airflow direction control – via remote control or the INTELLIGENT AIR Wi-Fi app.
Quiet operation
The advanced design and optimized airflow system guarantee exceptionally quiet operation, ensuring comfort in every situation.
HIGH ENERGY EFFICIENCY
HEIKO air conditioners are designed for maximum energy efficiency. Thanks to innovative technologies, the device consumes less energy in both cooling and heating modes. This translates into real savings in your household budget and a lower impact on the environment. It is the perfect solution for those looking for modern and energy-efficient air conditioning for their apartament, house or office.
SMART AIRFLOW
The SMART airflow function automatically adjusts the airflow direction depending on the air conditioner’s operating mode. During cooling, the airflow is directed upwards, and during heating, it is directed downwards, ensuring even air distribution throughout the room. This avoids unpleasant direct airflow on people in the comfort zone. This smart solution increases the efficiency of air conditioning and improves user comfort.

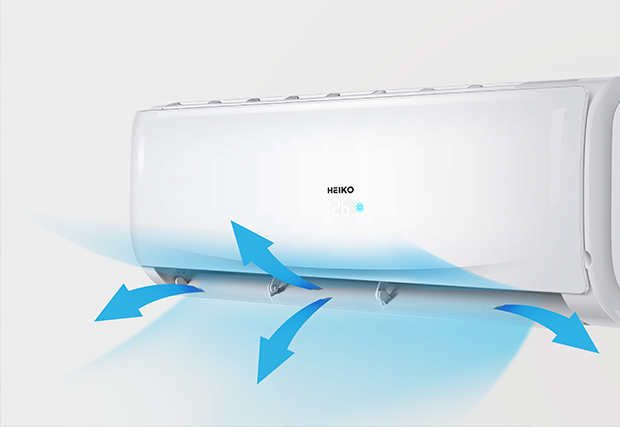

AIRFLOW CONTROL
The airflow control function allows you to precisely direct the airflow in the room, increasing the comfort of using the air conditioner. Vertical louvers (up-down) are controlled automatically using a wireless remote control or the INTELLIGENT AIR app, while the horizontal direction (right-left) is set manually. This solution prevents direct airflow onto people, improving the quality of cooling or heating. As a result, the air conditioner operates more efficiently and provides greater comfort in everyday use.
WI-FI CONTROL
HEIKO air conditioners offer convenient Wi-Fi control, allowing you to manage the device from anywhere using your smartphone. With the INTELLIGENT AIR app, you have quick access to all the basic functions of the air conditioner. Remote control allows you to easily adjust the temperature and airflow settings, which increases the comfort of use. Wi-Fi technology gives you full control over the climate in your home, no matter where you are. It is a solution that combines convenience with modern technology.
-
Technical data
Indoor unit JS025-C2 JS035-C2 JS050-C2 JS068-C2 Outdoor unit JZ025-C2 JZ035-C2 JZ050-C2 JZ068-C2 Capacity (cooling) Nom. (min – max) Btu/h 8870 (2730-10238) 10920 (2730-12286) 17060 (4430-19790) 23200 (7500-29000) Nom. (min – max) kW 2.6(0.8-3.0) 3.2(0.8-3.6) 5.0(1.3-5.8) 6.8 (2.2-8.5) Seasonal energy efficiency SEER/EER 6.1/3.23 6.1/3.01 6.1/3.41 6.8/3.23 Energy efficiency class Cooling A++ A++ A++ A++ Power input (cooling) Nom. (min – max) kW 0.80(0.30-1.20) 1.06(0.30-1.60) 1.46(0.40-2.00) 2.11 (0.70-2.90) Annual energy consumption kWh 149 184 287 350 Capacity (heating) Nom. (min – max) Btu/h 9555(2730-10920) 11603(2730-14330) 17740(4770-20470) 23200 (8180-32410) Nom. (min – max) kW 2.8(0.8-3.2) 3.4(0.8-4.2) 5.2(1.4-6.0) 6.8 (2.40-9.50) Energy efficiency SCOP/COP (moderate climate) 4.0/3.71 4.0/3.40 4.0/3.71 4.0/3.71 SCOP (warm/cold climate) 5.1/- 5.1/- 5.1/- 5.1/- Energy efficiency class (heating) Moderate/warm/cold climate A+/A+++/- A+/A+++/- A+/A+++/- A+/A+++/- Power input (heating) Nom. (min – max) kW 0.75(0.30-1.40) 1.0(0.30-1.60) 1.40(0.52-2.5) 1.83 (0.6-2.9) Annual energy consumption (heating) kWh 840 980 1610 1960 Operating temperature (cooling) Min – Max (indoor) / Min. – max (outdoor) °C -10-43 -10-43 -10-43 -15-43 Operating temperature (heating) Min – Max (indoor) / Min. – max (outdoor) °C -15-24 -15-24 -15-24 -15-24 Power supply f/V/Hz 1/220-240/50 1/220-240/50 1/220-240/50 1/220-240/50 Power supply (position) Outdoor unit Outdoor unit Outdoor unit Outdoor unit -
Indoor unit
Indoor unit JS025-C2 JS035-C2 JS050-C2 JS068-C2 Net dimensions W x D x H mm 820/195/280 820/195/280 1008/225/318 1008/225/318 Packaging dimensions W x D x H mm 909/279/355 909/279/355 1085/329/403 1085/329/403 Net/gross weight kg 8.2/10.5 8.2/10.5 11.6/14.4 11.6/14.4 Airflow (cooling/heating) Max m³/h 500 550 900 1100 Sound power level dB(A) 54 56 57 64 Sound pressure level dB(A) 37/33/29/19 38/34/29/20 44/40/35/28 48/44/38/33 Moisture elimination capacity 10-3m3/h 1 1.4 2.0 2.8 -
Outdoor unit
Outdoor unit JZ025-C2 JZ035-C2 JZ050-C2 JZ068-C2 Compressor HIGHLY HIGHLY HIGHLY MITSUBISHI Net dimensions W x D x H mm 700/245/544 700/245/544 800/275/553 890/340/705 Packaging dimensions W x D x H mm 845/320/593 845/320/593 954/409/625 1046/460/780 Net/gross weight kg 22.8/25.3 23.5/26 32.7/36.5 44/48 Airflow (cooling/heating) Max m³/h 2100 2100 2500 2600 Sound power level dB(A) 62 63 65 68 Sound pressure level dB(A) 49 50 53 57 Operating current Max A 6.2 7.1 11.3 13 Refrigerant filling Refrigerant type R32 R32 R32 R32 Refrigerant filling g 510 530 900 1100 Refrigerant piping Diameter of liquid pipe mm 6.35 6.35 6.35 6.35 Diameter of gas pipe mm 9.52 9.52 12.7 12.7 Max pipeline lengh / max level difference m 20/10 20/10 25/15 25/15 Max pipeline lengh without additional refill m 5 5 7 7 Amount of extra refrigerant per one metre of pipeline g/m 20 20 20 20
