CASSETTE units with round-way airflow

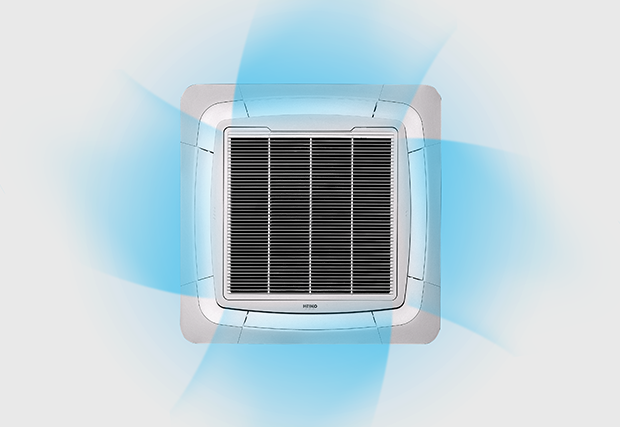

Round-way airflow
With the 360-degree cover, the air is supplied from four sides and corners to ensure efficient airflow in the room.

High energy efficiency
Innovative solutions enabled a significant reduction of energy consumption in both cooling and heating mode. The appliances have A++/A energy rating.

SMART airflow
An innovative solution for airflow control. The stream is directed upwards during the cooling and downwards during the heating, which enables an even distribution of air, thus preventing direct airflow on the user.

Airflow speed control

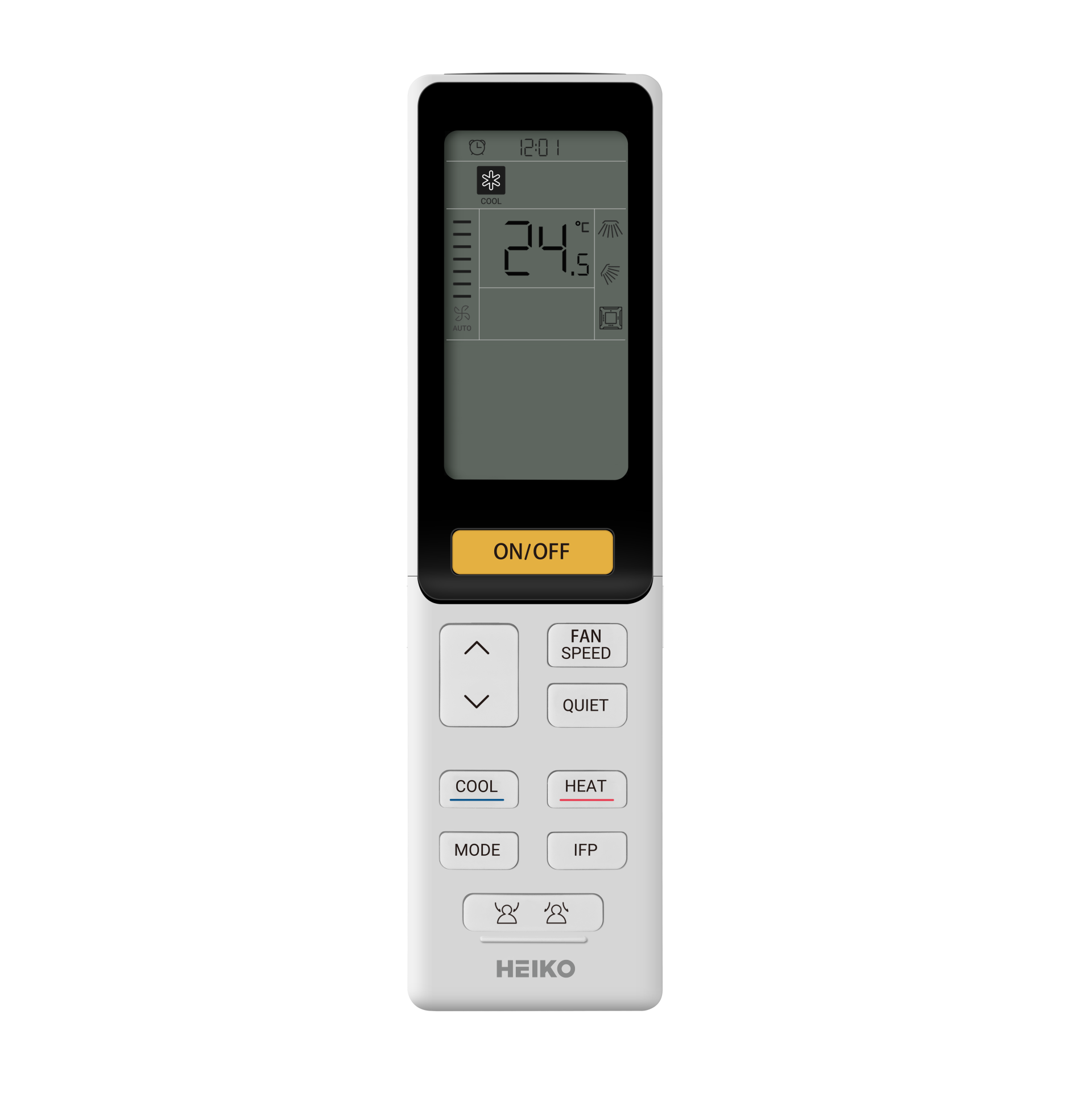

The option to control airflow shutters vertically and horizontally enables precise direction of the airflow. The function is available from the wireless controller.

Quiet operation
The components comprising the air conditioner and the optimum airflow system ensure quiet operation for comfort during work and leisure.
-
Technical Data
Indoor unit CA070-A1 Capacity rated Cooling kW 7,1 Heating kW 8 Electrical data Power supply Ph/V/Hz 1/220~240/50/60 Performance Airflow m³/h 1260/1070/820/680 Sound power level dB(A) 55 Sound pressure level dB(A) 36/33/29/26 Installation Dimensions without packaging (W x D x H) mm 840/840/204 Dimensions with packaging (W x D x H) mm 990/990/310 Net/gross weight kg 27/31 Diameter of liquid pipe mm 9,52 Diameter of gas pipe mm 15,88 Controller Wireless option YR-HRC01 Wired option YR-C01 Cover Type Option PB-950HE4 Dimensions without packaging (W x D x H) mm 950/950/50 Dimensions with packaging (W x D x H) mm 1000/1000/110 Net/gross weight kg 6.5/9
