CASSETTE units with 4-way airflow
MULTI SPLIT
High energy efficiency
Innovative solutions enabled a significant reduction of energy consumption in both cooling and heating mode. The appliances have A++/A energy rating.

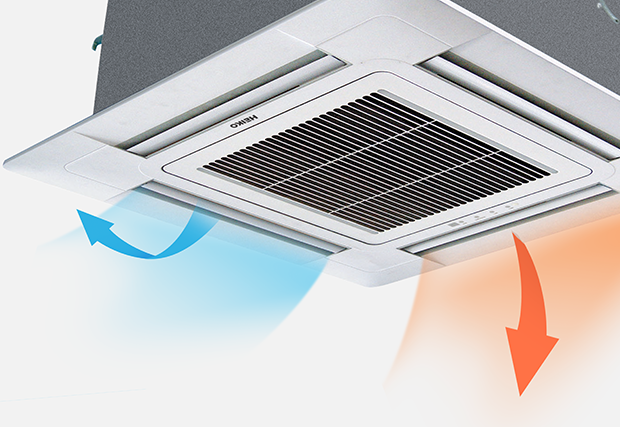

SMART airflow
An innovative solution for airflow control. The stream is directed upwards during the cooling and downwards during the heating, which enables an even distribution of air, thus preventing direct airflow on the user.
Airflow speed control
The option to control airflow shutters vertically and horizontally enables precise direction of the airflow. The function is available from the wireless controller.
Quiet operation
The components comprising the air conditioner and the optimum airflow system ensure quiet operation for comfort during work and leisure.
TURBO MODE
ONE-TOUCH FULL POWER
SLEEP FUNCTION
MAKE YOUR SLEEP COMFORTABLE
MODE:
COOLING HEATING DRYING FAN AUTO
-
Technical Data
Indoor unit CA035-A1 CA050-A1 Capacity rated Cooling kW 3.5 5 Heating kW 4.0 5,5 Electrical data Power supply Ph/V/Hz 1/220~240/50/60 1/220~240/50/60 Performance Airflow m³/h 620/520/420/350 700/600/500/400 Sound power level dB(A) 52 57 Sound pressure level dB(A) 35/32/30/28 42/37/35/31 Installation Dimensions without packaging (W x D x H) mm 570/570/260 570/570/260 Dimensions with packaging (W x D x H) mm 718/680/380 718/680/380 Net/gross weight kg 18.5/22 18.5/22 Diameter of liquid pipe mm 6.35 6,35 Diameter of gas pipe mm 9.52 12,7 Controller Wireless option YR-HRC01 YR-HRC01 Wired option YR-C01 YR-C01 Cover Type Option PB-700HE4 PB-700HE4 Dimensions without packaging (W x D x H) mm 700/700/60 700/700/60 Dimensions with packaging (W x D x H) mm 740/750/115 740/750/115 Net/gross weight kg 2.8/4.8 2.8/4.8
